Pocket doors are a smart solution for modern kitchens where clean and uncluttered design is a priority. They allow cabinet fronts to slide out of sight, keeping the kitchen open and streamlined, hiding appliances, individual stations, or an entire pantry. But it's not just thoughtful design that makes this smooth running possible. There's hardware behind it.
One of the most important but often overlooked components of any hardware is the hinges. Properly selected, they ensure smooth opening, full extension, and perfect door alignment in conjunction with tall cabinet doors. Without them, even the most well-designed pocket door system can turn into a daily frustration.
So let's talk about what hinges are used with pocket doors and how they affect the performance of kitchen cabinets.
How Pocket Doors Work in Tall Cabinets
A pocket door opens like a normal door, then slides into the cabinet to disappear. This two-stage action requires precise alignment and clearance, which is why tall doors rely on well-specified hinges and tracks.This makes it ideal for tall cabinets, especially for sections like appliance garages, where access and clearance are key.
Tall cabinet doors have their own characteristics: they are heavier, take up more floor space, and require precise alignment to look and function properly. The hinge in this case doesn’t just open the door but also supports the weight, maintains visual lines, and helps move the door into the pocket mechanism. This is where the hardware makes the biggest difference.
Pocket Door Hardware: What Works Together
| Component | What it does | What to specify |
|---|---|---|
| Concealed hinge | Creates initial swing; keeps door aligned | 35 mm cup; 3-way adjustment; soft-close variant optional |
| Mounting plate | Sets hinge position and reveal | Height options (0–3 mm) for fine tuning |
| Slide/track set | Guides door into the cabinet “pocket” | Load rating ≥ door weight; smooth bearings |
| Pocket mechanism | Holds door fully retracted | Adequate clearances for thickness/handles |
| Optional dampers | Soft open/close comfort | Confirm compatibility with hinge/track model |
The Role of the Hinge in Pocket Doors
The hinge creates the first motion and sets alignment for the slide-in. On tall doors it prevents sag, keeps reveals even, and ensures the face sits flush when closed.
In many pocket door systems, the hinge is critical to the initial movement. It helps extend the door far enough to engage the sliding mechanism. Once the door begins to move, the guides direct the door into the pocket. However, the hinge still plays an important role in holding the door securely in place. This reduces wear and allows it to be adjusted as needed.
This is especially important for tall cabinet doors. A good hinge will prevent sagging over time, help level the door if it moves, and ensure that when closed, the door sits flush with the cabinet front.
SlideOn Hinges for Pocket Doors
.webp)

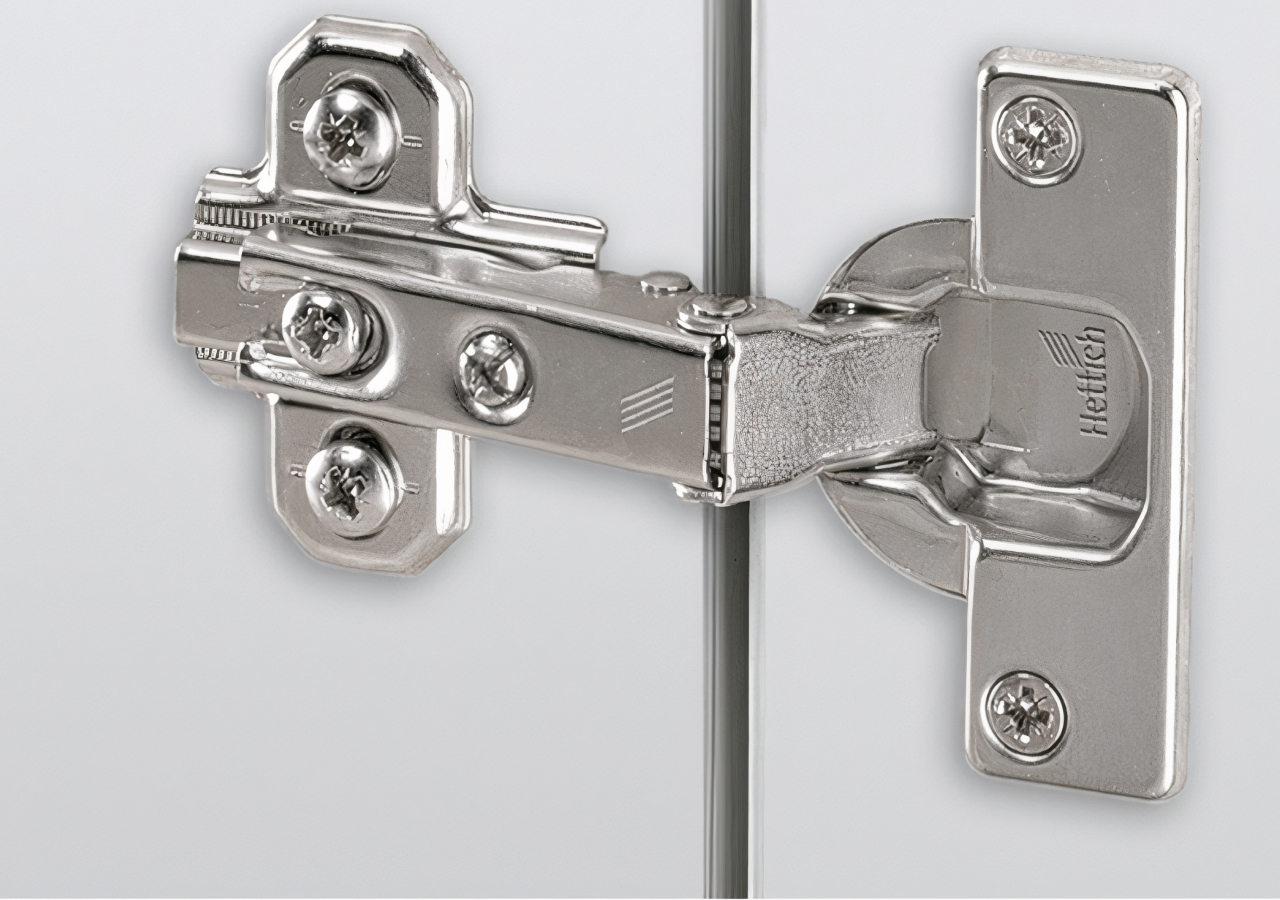

SlideOn is a concealed hinge often paired with pocket systems in tall cabinets thanks to its quick installation and 3-way adjustment. Soft-close variants add comfort if compatible with the pocket track.
The SlideOn hinge from Hettich is a reliable option for tall cabinets. Although it is not exclusively designed for pocket door systems, it is often used in conjunction with them, especially in kitchens where compact and efficient hardware is required. It is a type of concealed hinge, meaning it remains invisible when the cabinet is closed. It offers clip-on installation, which speeds up the assembly process.
Once installed, the hinge offers three-dimensional adjustment, especially useful for tall doors where precise top-to-bottom alignment is needed. And for those who need an extra level of comfort and durability, SlideOn is available with a soft-closing function, an option that is becoming increasingly popular in today’s kitchens.
Why Hinges Matter in Modern Kitchen Design
.webp)

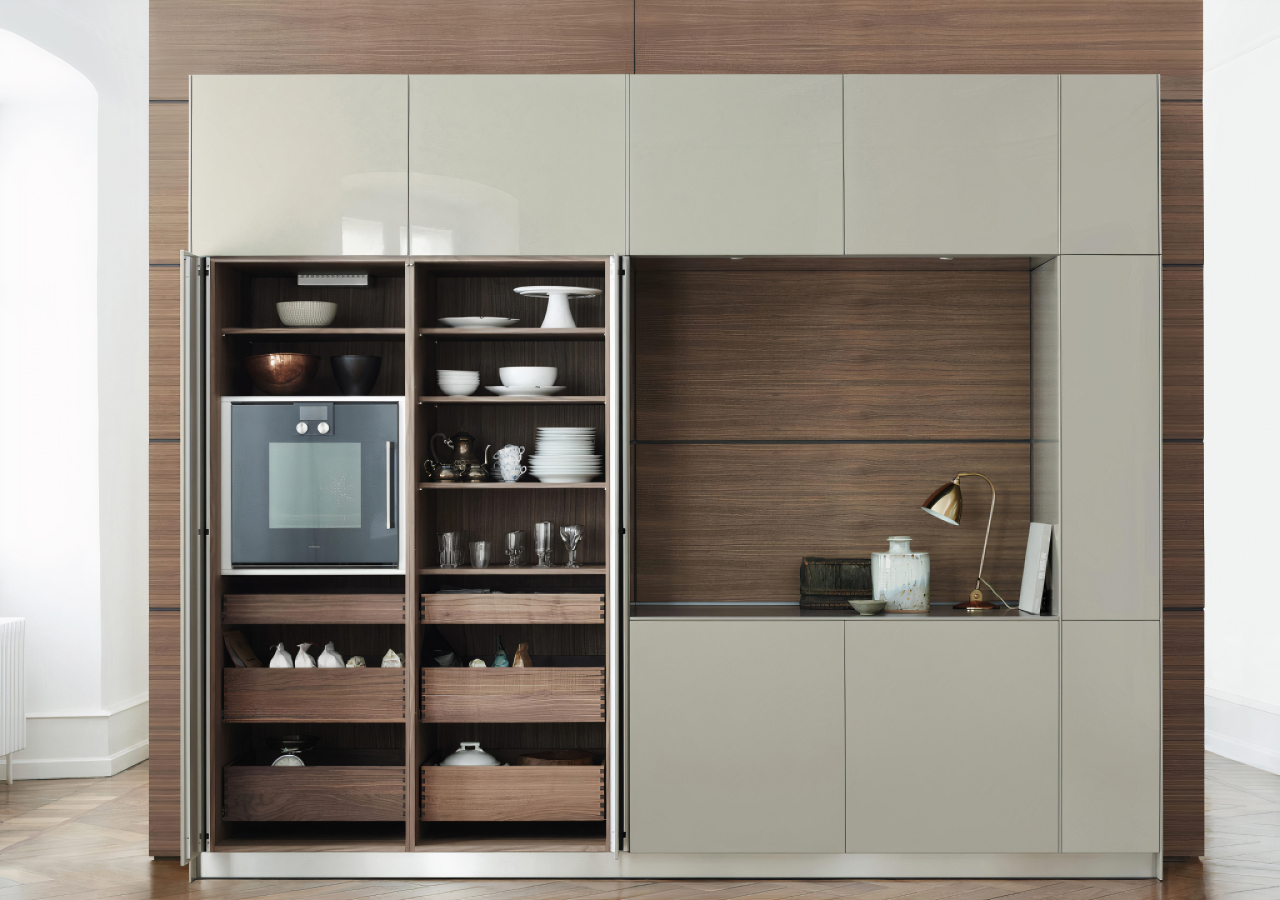

Pocket doors protect aisle space and visual calm. Their success depends on durable, adjustable hinges that support door weight and allow reliable engagement with the sliding mechanism.
Today’s kitchens serve multiple purposes. It’s a place for cooking, but also a place where we work, socialize, and relax. This means that cabinets need to adapt to the lifestyle, offering versatility and style. Pocket doors provide a more streamlined look, don’t take up space, and don’t clutter the kitchen.
When using tall cabinets, pocket doors are especially useful. They free up aisles, support integrated work areas, and help maintain a calm visual rhythm on large wall surfaces. But all of these benefits depend on high-performance and durable hardware, especially hinges.
Conclusion
You may not see the hinges behind tall pocket doors, but you'll feel the difference they make every time you open or close them. A system like Hettich's SlideOn provides smooth operation, long-term reliability, and visual accuracy—all essential elements of a well-designed kitchen.
If you're planning a kitchen renovation and considering pocket doors for tall cabinets, don't overlook the hardware. When form and function are so closely linked, even the smallest components make a big difference.
FAQ
Do pocket doors need hinges?
Pocket doors still need hinges, especially for tall cabinet doors. The hinge enables the door to swing outward initially, then engage with the sliding track to retract smoothly. Without it, the pocket door can’t clear the frame or support the weight needed for tall, heavy doors.
What is the advantage of a pocket door?
A pocket door creates a clean, uncluttered visual aesthetic. When concealed, it saves aisle space and eliminates the need for swinging doors, which is particularly helpful in tight kitchens or high-traffic zones. It also helps integrate appliances or pantry areas into a streamlined wall surface, maintaining a calm design rhythm.
How to make a pocket door slide smoothly?
The key is the right hardware: choose concealed hinges that offer multi‑directional adjustment and a compatible track mechanism. Proper installation ensures perfect alignment, while timely maintenance—like cleaning the slide track and checking hinge tension—keeps operation effortless over time.
What is the difference between a pocket door and a folding door?
A pocket door slides fully into the cabinet or wall cavity, becoming invisible when open. In contrast, a folding (bi‑fold or tri‑fold) door remains partially visible, as it folds on itself in sections. Pocket doors deliver a sleeker appearance and require no extra forward clearance.
What are the rules for door hinges?
For tall cabinet pocket doors, hinges should support the door’s full weight, remain concealed when closed, and allow fine adjustment in all three dimensions to maintain perfect alignment over time. They also need to provide enough swing to engage the sliding mechanism reliably, and for added comfort, soft-close is a modern convenience many homeowners appreciate.
