A well-crafted kitchen floor plan is the cornerstone of any successful renovation. It is not just a scaled drawing of walls and appliances. It is the framework that determines how your kitchen will feel and function every single day.
When people search for a kitchen floor plan, they are usually trying to answer bigger questions: Which layout works best for this room? Will an island actually fit? Are the walkways wide enough? Where should the fridge, sink, and cooktop go so the space feels effortless instead of crowded?
This guide helps you pick a layout, protect clearances, and avoid the mistakes that force redraws. A strong floor plan protects circulation first, then builds layout and storage around it. It accounts for appliance sizes and door swings before cabinetry is finalized. It ensures there is landing space where you naturally need it. When these decisions are made early and thoughtfully, the kitchen not only looks composed on paper, it works smoothly in real life.
Kitchen Floor Plan Decisions That Affect Everything
What Is a Floor Plan?
A floor plan is a scaled, top-down drawing of a room that shows walls, doors, windows, and built-in elements. In a kitchen, it becomes a functional map. It reveals how people will move, where appliances open, and how different areas of the room connect.
A kitchen floor plan is not complete when it only shows cabinet outlines. It should clarify circulation paths, identify tall elements that affect sightlines, and indicate where landing space and prep areas are located. In other words, it should explain how the kitchen operates, not just how it looks.
More practically, a kitchen floor plan is a clearance and workflow map. Its job is to prevent conflicts before they happen: fridge doors hitting walls, a dishwasher blocking the main path, drawers colliding at corners, or prep space ending up too far from the sink and cooktop. The goal is not just to fit cabinets into a room. It is to make the room work.
Creating Your Kitchen Floor Plan
Gather the Essentials
Before choosing a layout, start with accurate measurements. Measure the full length and width of the room, including alcoves, soffits, or structural elements that may affect cabinetry. Each wall should be measured carefully, along with window positions, window heights, and door openings including trims. Ceiling height also matters, especially if you are considering full-height cabinetry.
Appliances should be marked with real dimensions, not estimates. The exact width, depth, and required clearance for the fridge, range, dishwasher, and any specialty appliances will influence the final layout. Door swings are especially important. A refrigerator that cannot open fully or a dishwasher that blocks the main walkway can compromise the entire plan.
At this stage, it is also helpful to identify fixed constraints. Radiators, structural columns, plumbing stacks, and ventilation routes often shape the layout more than people expect. A realistic floor plan acknowledges these early rather than trying to design around them later.
Mark Constraints and Behaviors
Good planning is not only about measuring the room. It is also about understanding how the kitchen will be used.
Mark which doorway handles the main traffic through the space. Think about where groceries usually enter and where they should land first. Decide where trash and recycling should live so they support prep instead of interrupting it. Confirm which appliances are staying and which are changing, since that affects both dimensions and utility requirements. If seating is part of the plan, decide how many stools you actually need before you size the island or peninsula around them.
This is also the point where a measurement guide becomes useful. If you link to a kitchen measurement guide or PDF, add one line explaining that it covers wall dimensions, window and door positions, ceiling height, appliance sizes, and the fixed details that affect layout decisions.
Map the Zones Before the Cabinets
.webp)
Once the room is measured, think in terms of zones rather than cabinets. Modern kitchen planning focuses on four functional zones: storage, prep, cooking, and cleaning. Storage typically centers around the fridge and pantry. Prep requires uninterrupted counter space and easy access to trash and utensils. Cooking revolves around the cooktop or range and nearby pots and pans. Cleaning includes the sink, dishwasher, and dish storage.
Placing these zones in a logical sequence creates a natural flow. Groceries move from the entry to storage. Ingredients move from storage to prep. Prepared food moves to cooking. Dishes move from table to sink to dishwasher to storage. When the zones are arranged intentionally, the kitchen feels intuitive instead of chaotic.
If you want a deeper explanation of this approach, see our guide on family-friendly kitchen layout and zones.
Choosing the Right Layout
With zones in mind, you can evaluate layout types more clearly. A galley layout works well in narrow rooms because it protects circulation along a central aisle. An L-shape often suits open-plan homes, allowing space for a dining area or island. U-shaped kitchens can maximize storage but require careful attention to corner access and clearances. One-wall kitchens depend heavily on smart storage planning to remain functional.

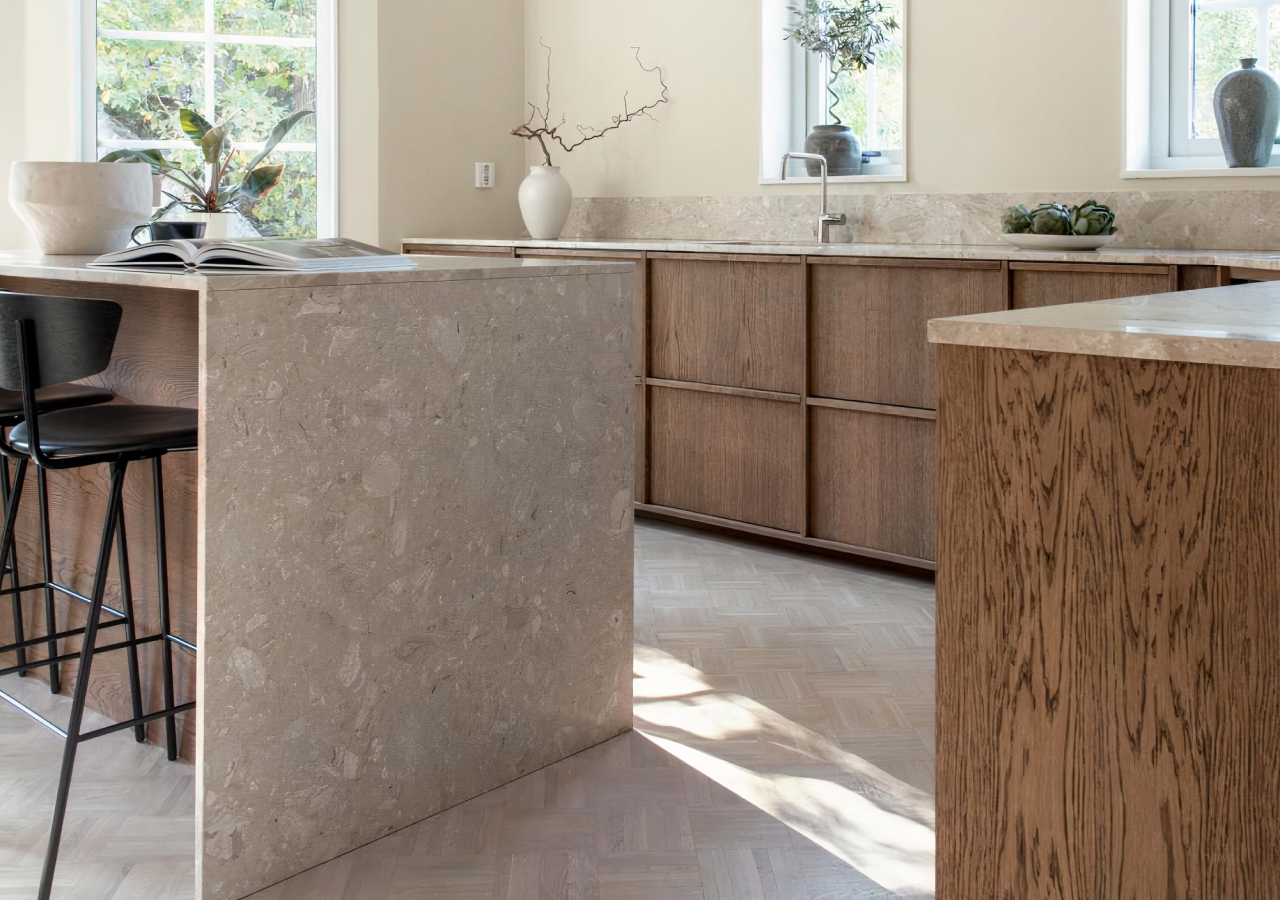

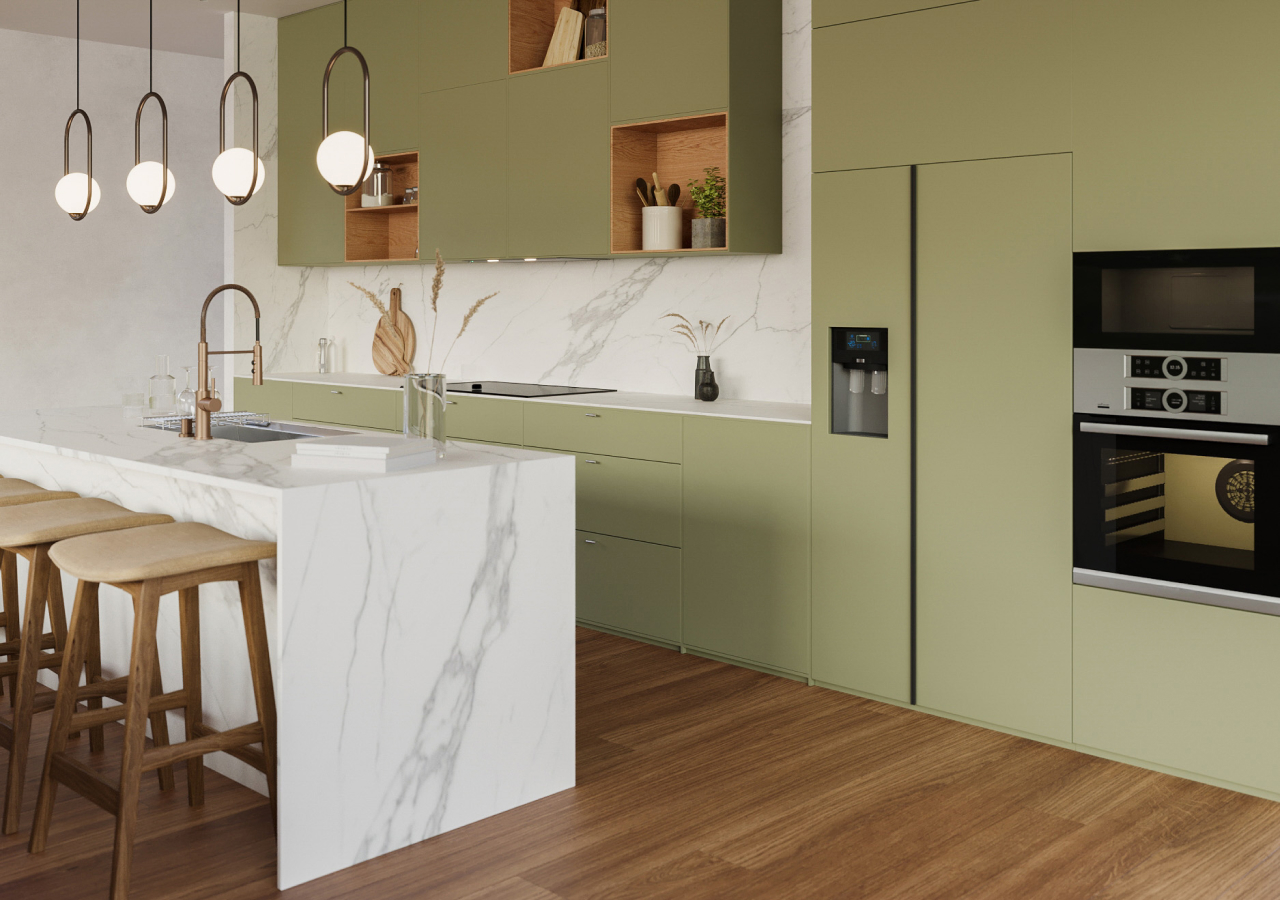

An island should only be introduced once main walkways are protected. As a baseline, aim for at least 90 cm or 36 inches of clearance in primary aisles, with 90–105 cm or 36–42 inches feeling more comfortable for everyday use. Seating adds another layer. Stools should not shrink the main circulation path or block access to appliances. For smaller Eropean-style kitchen designs, this guide can help refine layout decisions.
Sketch Your Floor Plan
When you begin sketching, start with the perimeter walls and fixed elements. Then draw the layout structure, whether that is parallel runs, an L-shape, or a U. Place tall units carefully, as they visually anchor the space and affect flow.
Next, position the four zones. Confirm that prep space is located between storage and cooking, not isolated at the far end of the kitchen. Add landing areas near the fridge for groceries, beside the sink for prep, and next to the cooktop for hot pans. These small surfaces are often overlooked, yet they prevent clutter from spreading across the room.
Finally, incorporate storage decisions into the drawing. Drawer-first base cabinets typically improve usability because they reduce stacking and make everyday tools easier to access. Trash should sit near the prep zone. Pots and pans should be close to the cooking area. These internal decisions shape the success of the floor plan just as much as the outer dimensions.
If you want broader practical rules on what works and what causes regrets, this functional kitchen guide is a good companion.
Double-Check and Review
Review your kitchen floor plan with measurements for accuracy. Then run this checklist before you treat it as final:
- With the dishwasher open, can someone still pass through the main aisle?
- When the fridge door is open, does it block circulation or hit a wall, island, or handle?
- Is there landing space next to the fridge for groceries?
- Is there landing space beside the cooktop or range for hot pans?
- Is the trash near the prep zone rather than across the kitchen?
- Do drawers or pull-outs collide at corners or near the dishwasher?
- Can upper cabinets open comfortably near window trim, lighting, or other obstructions?
- Are everyday-use upper cabinets reachable without strain?
- If the island includes seating, do stools block the main path when in use?
If you are unsure about any aspect of your kitchen plan with dimensions or need expert advice, contact your Corner designer through our app. We can sanity-check layout choices, clearances, zones, and appliance constraints so the plan stays clean, functional, and buildable.
Conclusion
Creating a detailed kitchen floor plan is the first step toward realizing your dream kitchen. The best plans don’t just “fit cabinets.” They protect circulation, place zones in the right order, and lock appliance specs early so your cabinetry stays realistic. With Corner's guidance and resources, you can develop a floor plan that becomes a reliable foundation for a modern, functional, and beautiful kitchen. Grab your measuring tape, map your zones, and start designing a kitchen that looks calm and works hard every day.
